Installing Pocket Door Hardware

We were recently tasked with installing some pocket door hardware as part of a whole home remodel in Norwalk, Fairfield County.  The job required us to mortise out the doors on the edge and the face in order to accept pulls to assist in opening and closing the door.  The doors were already painted, so we needed to be especially careful not to chip the paint or damage the finish.  Also, one slip and the whole door would be ruined, requiring the removal of all the casing and trim around the door.  In other words, we only had one chance to get this, and it had to be perfect.

In situations like these, we like to build templates which we can use as a guide for our router to mortise out the door, as seen here:

pocket door flush pull template
A template built for creating the mortise for a pocket door flush pull
pocket door edge pull template
A template made for creating the mortise for a pocket door edge pull

Once we have made an exact template for our hardware, we then clamp it to our door, and can safely use a router to remove the material:

pocket door flush pull
Pocket Door mortised for flush pull

No need to worry about slipping and cutting too far or damaging the finish.  Now, all that’s left is to install the door hardware:

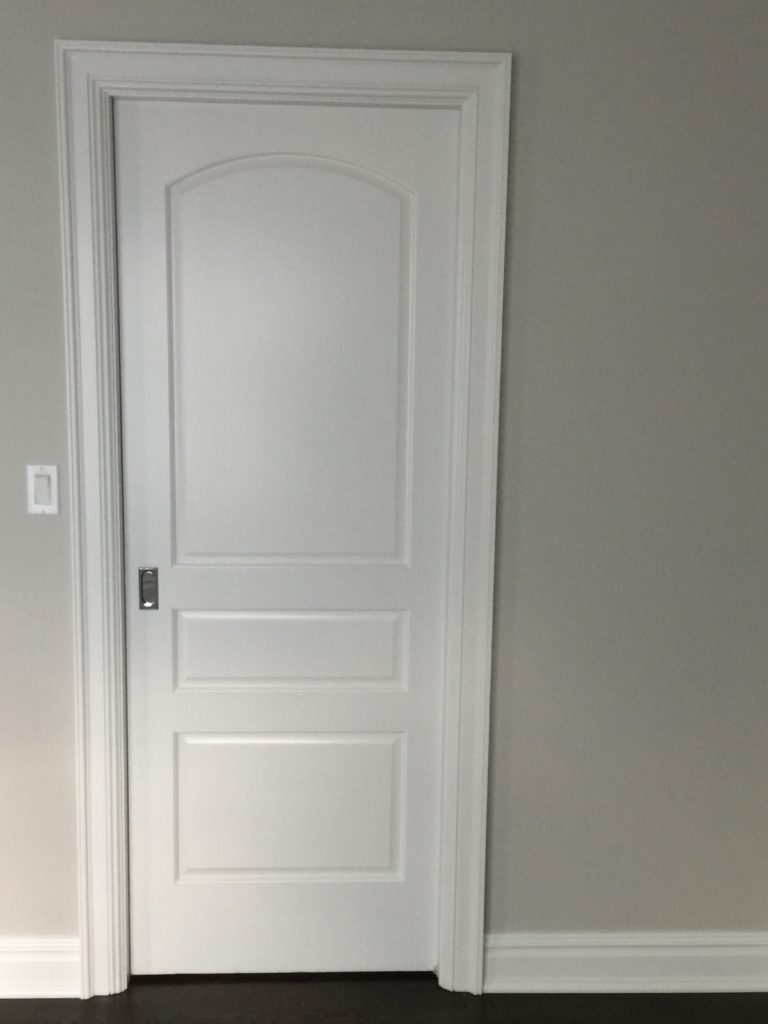

Pocket door flush pull
Pocket door flush pull installed
Pocket door edge pull
Pocket door edge pull installed

A little bit of careful preparation and planning make this difficult task safe and simple, ensuring that this home renovation goes smoothly.
